Atom Ibiza 48" 3 Blade 40W DC Ceiling Fan Atom Ibiza 48" 3 Blade 40W DC Ceiling Fan
Atom Ibiza 48" 3 Blade 40W DC Ceiling Fan
Atom Lighting

Atom Ibiza 48" 3 Blade 40W DC Ceiling Fan

$223.00
$269.00
-17.1%

Quiet and efficient 40W DC motor ABS construction ideal for coastal conditions Includes 8 speed remote control with turbo and timer function

0 in stock
Quantity:
- +
Add to cart -  $223.00

  • SKU:

    IBIZA/48/WH

  • Categories:

    Fans & Heater

Atom Ibiza 48" 3 Blade 40W DC Ceiling Fan
Atom Ibiza 48" 3 Blade 40W DC Ceiling Fan
Fans & Heater
$223.00
Quantity:
- +
Add To Cart
  • Description
  • Specifications
  • Controllers
  • Downloads
Atom Ibiza 48" 3 Blade 40W DC Ceiling Fan

  • Suitable for outdoor under cover areas
  • Reversible for summer and winter use via remote control
  • Natural wind mode
  • Quick connect wiring for ease of installation
  • Easy blade assembly
  • Available in matt white and matt black

Optional LED Light

  • 19W dimmable tri-colour LED
  • Switchable colour temperature between 3000K, 4000K and 5000K
  • Lumen output of up to 1385lm

Product Specifications

Mechanical

IP RatingIP20
Fitting ColourSatin White
Body MaterialABS

Electrical

Working Temp Range-10 to 40 °C
Input Frequency50 Hz
Input voltage230Vac
In Australia the Input voltage is defined as 230Vac -6%/+10%. This effectively means that the voltage range of these products are 216Vac - 253Vac or 240V +6%

Air Movement

Motor Wattage40 W
Motor TypeDC
No. Speeds8
ControlRemote control

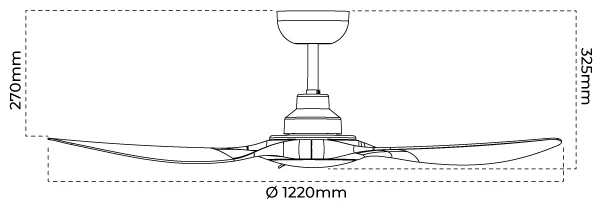

Ceiling Rake15 °
Ceiling Drop325 mm
Blade Pitch13 °
Blade MaterialABS
Fan Size1220mm (48inch)
Fan Speed 13 W, 95 rpm, 4200 m³/h
Fan Speed 25 W, 120 rpm, 5300 m³/h
Fan Speed 311 W, 160 rpm, 7800 m³/h
Fan Speed 419 W, 185 rpm, 9500 m³/h
Fan Speed 522 W, 195 rpm, 10200 m³/h
Fan Speed 627 W, 210 rpm, 11000 m³/h
Fan Speed 732 W, 220 rpm, 11500 m³/h
Fan Speed 840 W, 235 rpm, 12500 m³/h

Compliance

Standards
  • AS/NZS 60335.1
  • AS/NZS 60335.2.80
  • AS/NZS CISPR 14
  • AS/NZS 4268

No Data Available
