Atom Ibiza 52" 3 Blade 40W DC Ceiling Fan Atom Ibiza 52" 3 Blade 40W DC Ceiling Fan
Atom Ibiza 52" 3 Blade 40W DC Ceiling Fan
Atom Lighting

Atom Ibiza 52" 3 Blade 40W DC Ceiling Fan

$238.00
$299.00
-20.4%

Optional LED Light 19W dimmable tri-colour LED Switchable colour temperature between 3000K, 4000K and 5000K Lumen output of up to 1385lm

0 in stock
Quantity:
- +
Add to cart -  $238.00

  • SKU:

    IBIZA/52/BK

  • Categories:

    Fans & Heater

Atom Ibiza 52" 3 Blade 40W DC Ceiling Fan
Atom Ibiza 52" 3 Blade 40W DC Ceiling Fan
Fans & Heater
$238.00
Quantity:
- +
Add To Cart
  • Description
  • Specifications
  • Controllers
  • Downloads
Atom Ibiza 52" 3 Blade 40W DC Ceiling Fan

  • Quiet and efficient 40W DC motor
  • ABS construction ideal for coastal conditions
  • Includes 8 speed remote control with turbo and timer function
  • Suitable for outdoor under cover areas
  • Reversible for summer and winter use via remote control
  • Natural wind mode
  • Quick connect wiring for ease of installation
  • Easy blade assembly
  • Available in matt white and matt black

Product Specifications

Mechanical

IP RatingIP20
Fitting ColourSatin White
Body MaterialABS

Electrical

Working Temp Range-10 to 40 °C
Input Frequency50 Hz
Input voltage230Vac
In Australia the Input voltage is defined as 230Vac -6%/+10%. This effectively means that the voltage range of these products are 216Vac - 253Vac or 240V +6%

Air Movement

Motor Wattage40 W
Motor TypeDC
No. Speeds8
ControlRemote control
Ceiling Rake15 °

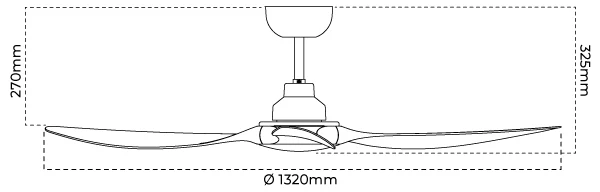

Ceiling Drop325 mm
Blade Pitch13 °
Blade MaterialABS
Fan Size1320mm (52inch)
Fan Speed 13 W, 85 rpm, 4000 m³/h
Fan Speed 25 W, 105 rpm, 5500 m³/h
Fan Speed 311 W, 140 rpm, 8000 m³/h
Fan Speed 419 W, 165 rpm, 9100 m³/h
Fan Speed 522 W, 170 rpm, 9800 m³/h
Fan Speed 627 W, 175 rpm, 10000 m³/h
Fan Speed 732 W, 185 rpm, 10400 m³/h
Fan Speed 840 W, 205 rpm, 12000 m³/h

Compliance

Standards
  • AS/NZS 60335.1
  • AS/NZS 60335.2.80
  • AS/NZS CISPR 14
  • AS/NZS 4268

No Data Available
