Atom Vanuatu 52" 4 Blade 40W DC Ceiling Fan Atom Vanuatu 52" 4 Blade 40W DC Ceiling Fan
Atom Vanuatu 52" 4 Blade 40W DC Ceiling Fan
Atom Lighting

Atom Vanuatu 52" 4 Blade 40W DC Ceiling Fan

$179.00
$269.00
-33.46%

Optional LED Light 15W dimmable tri-colour LED Switchable colour temperature between 3000K, 4000K and 5000K Lumen output of up to 1145lm

0 in stock
Quantity:
- +
Add to cart -  $179.00

  • SKU:

    VANUATU/52/WH

  • Categories:

    Fans & Heater

Atom Vanuatu 52" 4 Blade 40W DC Ceiling Fan
Atom Vanuatu 52" 4 Blade 40W DC Ceiling Fan
Fans & Heater
$179.00
Quantity:
- +
Add To Cart
  • Description
  • Specifications
  • Controllers
  • Downloads
Atom Vanuatu 52" 4 Blade 40W DC Ceiling Fan

Quiet and efficient 40W DC motor

ABS construction ideal for coastal conditions

Includes 3 speed DC wall control

Ideal for outdoor undercover patio areas

Reversible for summer and winter use

Quick connect wiring for ease of installation

Easy blade assembly

Product Specifications

Mechanical

IP RatingIP20
Fitting ColourSatin White
Body MaterialABS

Electrical

Working Temp Range-10 to 40 °C
Input Frequency50 Hz
Input voltage230Vac
In Australia the Input voltage is defined as 230Vac -6%/+10%. This effectively means that the voltage range of these products are 216Vac - 253Vac or 240V +6%

Air Movement

Motor Wattage40 W
Motor TypeDC
No. Speeds3
ControlWall control

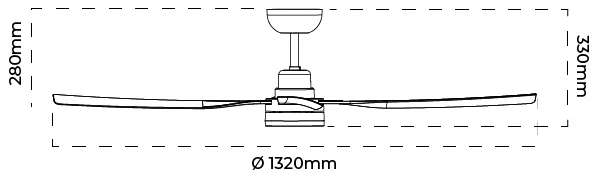

Ceiling Rake15 °
Ceiling Drop330 mm
Blade MaterialABS
Fan Size1320mm (52inch)
Fan Speed 140 W, 186 rpm, 11100 m³/h
Fan Speed 220 W, 145 rpm, 8800 m³/h
Fan Speed 35 W, 90 rpm, 4600 m³/h

Compliance

Standards
  • AS/NZS 60335.1
  • AS/NZS 60335.2.80
  • AS/NZS CISPR 14

No Data Available
